GSX100 - CO2

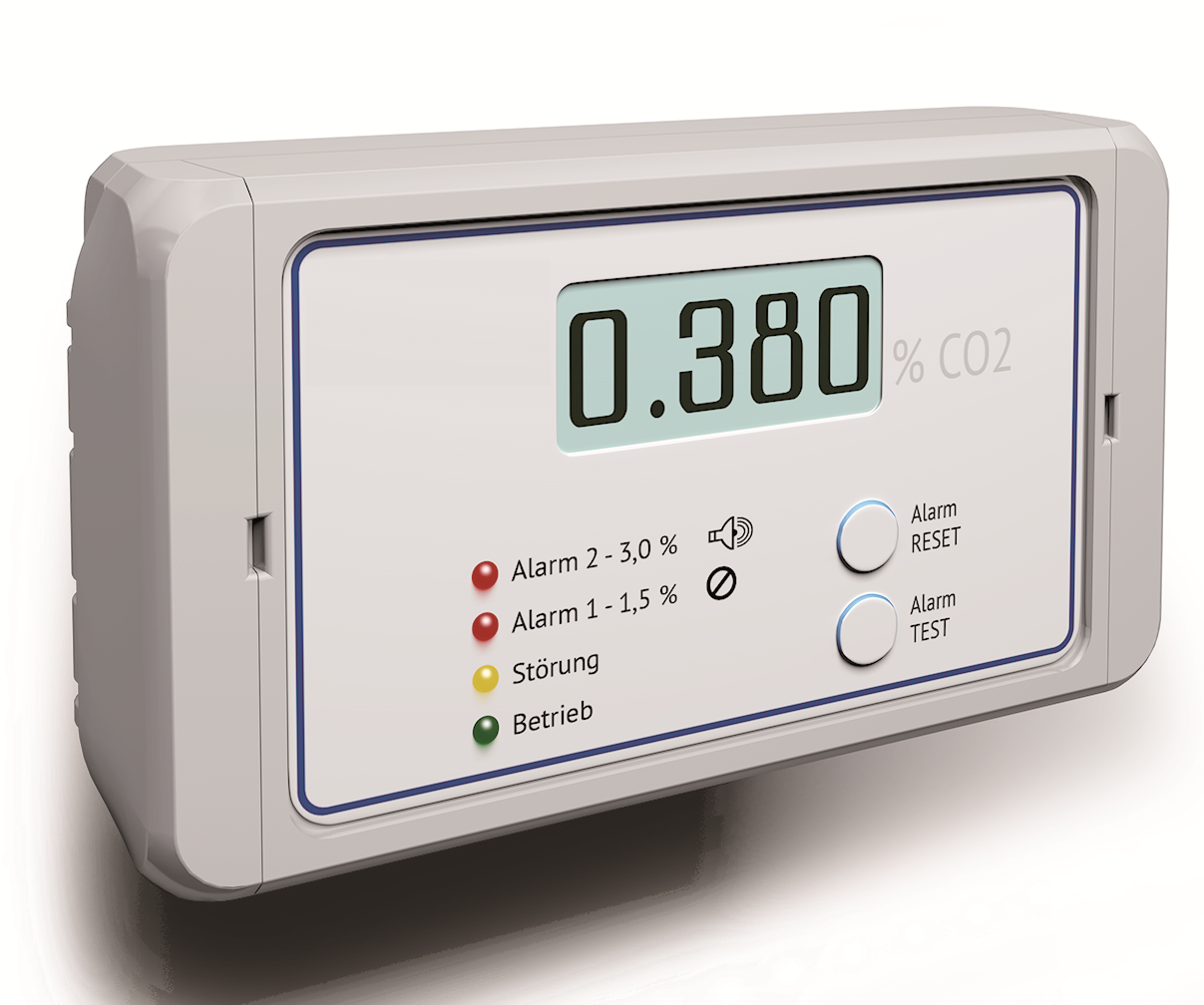

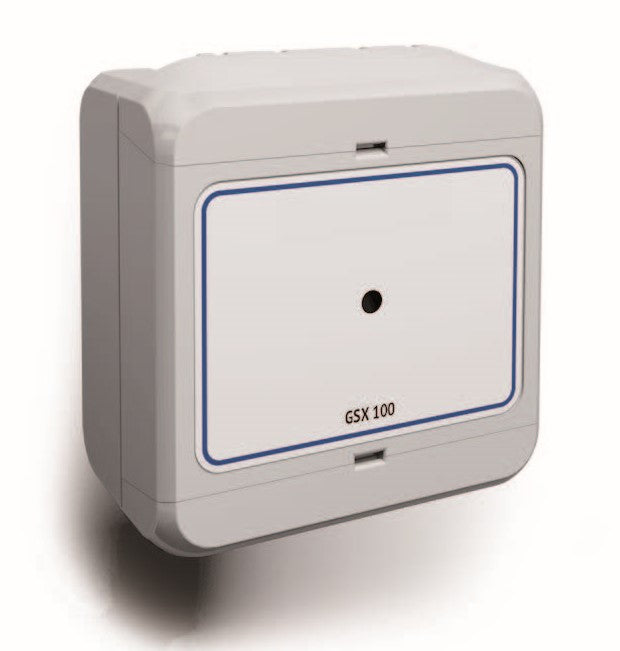

The S4S GSX100 gas warning system consists of a control unit with a LED display, as well as LED displays for operating and alarm status. An integrated buzzer signals the 2 fixed alarm levels acoustically, providing additional Security. The ready-to use digital gas sensor is pre-assembled and equipped with a 3 meter sensor cable. The sensor works with a stand-alone background calibration, is self-monitoring and therefore extremely durable. In addition, operation of fan units, for example, can be directly accessed by means of the volt free relay contacts.

With its high reliability, short response time to changing carbon dioxide concentration, the large display, the LED alarm, the integrated acoustic alarm, the low cost of acquisition, the effortless installation, the gas warning unit S4S GSX100 is a versatile and safe gas warning system for the monitoring of hazardous carbon dioxide concentrations.

Package contents:
1 x GSX100 Control Panel
1 x GSX100 CO2 Gas Sensor

 Features:
 • 0-5% Vol Carbon Dioxide (CO2)
 • Fast response time
 • Compact, easy to use, easy to install
 • Large easy to read gas display
 • 2 levels of alarm
 • Automatic diagnostic system surveillance and fault monitoring
 • Alarm relay for operation of fans and Sounder/Beacons
 • Robust and weatherproof
