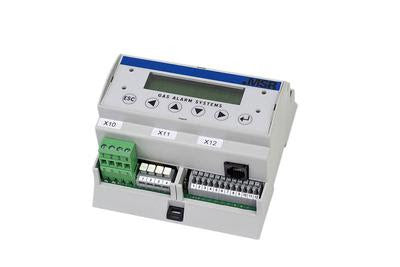

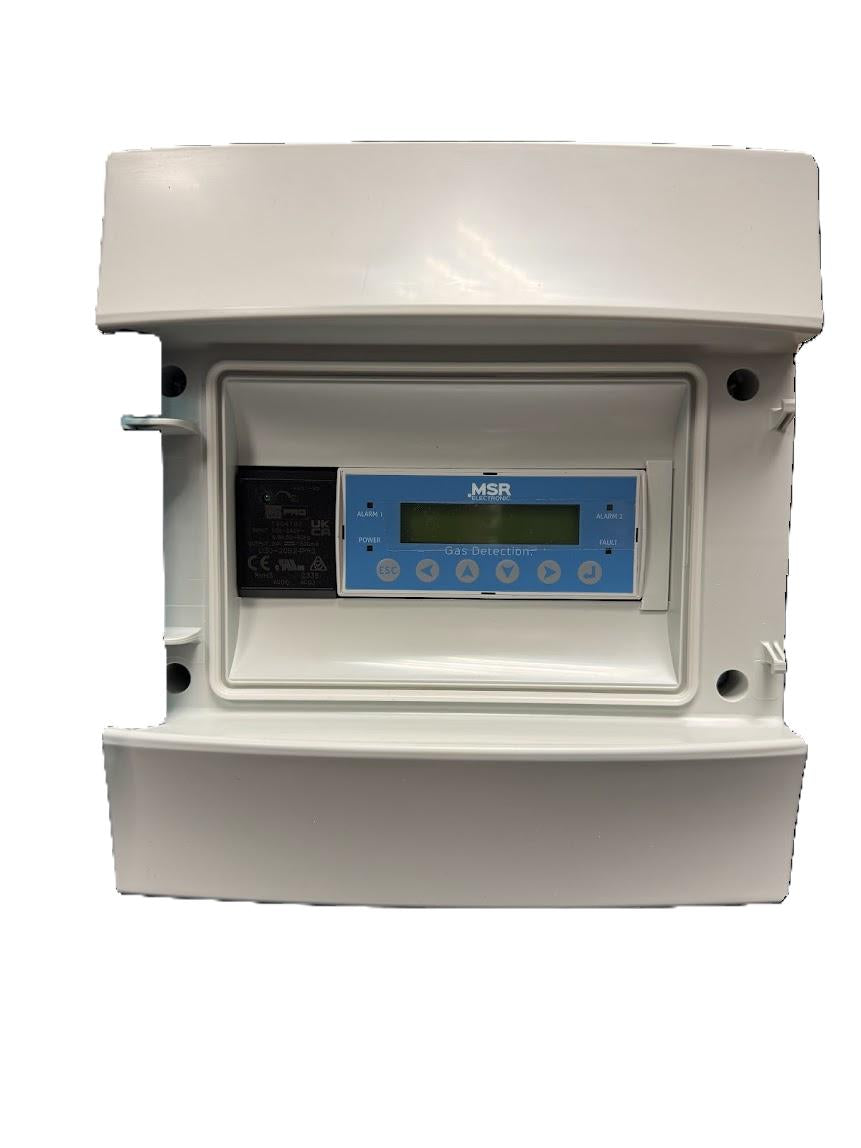

MSR GC-06 Gas Detection Control Panel

The GC-06 Gas-Controller is used for the monitoring and warning of toxic and combustible gases and vapours as
well as of Freon refrigerants within a wide range of the gas measurement technique. Numerous adjustable
parameters and set-points permit individual adaptation to many applications.

FEATURES
• For connection of up to 96 PolyGard®2/PolyXeta®2 bus sensors
 • 4 analog inputs, 4–20 mA, for analog sensors
 • Suitable for more than 50 different toxic, combustible and refrigerant gas types
 • Simple and comfortable commissioning by configuration with standard parameters
 • Logical system menu
 • Flexible configuration thanks to programmable parameters and setpoints
 • 4 free adjustable alarm thresholds per sensor
 • 5 menu languages, free adjustable
 • Several alarm relays configurable per alarm
 • Access to menu operation via 4 code levels
 • Project protection
 • Temporary locking of transmitters possible for the customer
 • Alarm release by falling or increasing gas concentrations selectable for each alarm threshold
 • Connector for PCE06 Software at the Controller module
 • 4 own relays with change-over contact, potential-free, max. 250 V AC, 5 A; 30 V DC, 2 A
 • Additional control of up to 28 relays with change-over contact, potential-free, max. 250 V AC, 5 A; 30 V DC, 2 A
 (1–7 EP-06 modules) and
 • Additional control of up to 96 relays with change-over contact, potential-free, max. 250 V AC, 5 A; 30 V DC, 2 A
 (via MSC2/MSB2) and/or
 • Additional control of up to 96 relays with change-over contact, potential-free, max. 40 V AC, 0.5 A (locally via
 WSB2)
 • Fault relay with normally open contact, potential-free, max. 250 V AC, 5 A; 30 V DC, 2 A
 • 2 analog outputs, 4–20 mA, with selective signal output for special mode, fault, etc.
 • Up to 7 EP-06 expansion modules with integrated repeater function connectable
 • Serial interface RS-485 with Modbus RTU protocol
 • EN 50545-1 conformity
 • SIL2 level conformity
 • Integrated reverse polarity and overload protection for field bus outputs
